Fd-8 PCB.png

From Just in Time

Fd-8_PCB.png ‎(333 × 333 pixels, file size: 40 KB, MIME type: image/png)

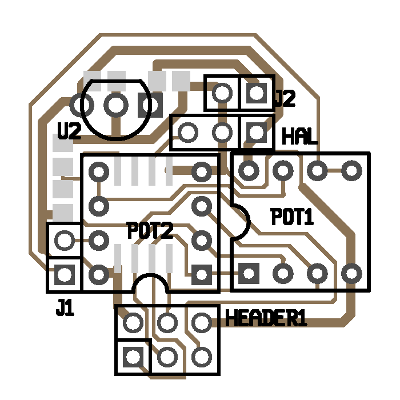

WIP on the FD-8 PCB. Note how the header can be removed from the print without re-routing. Some of the traces run critically close to the pads though. A single (50k) pot version is also possible with minimal re-routing.

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current14:07, 15 February 2014Thumbnail for version as of 14:07, 15 February 2014333 × 333 (40 KB)Danny (talk | contribs)Version with added header for switch/LED.
12:02, 9 February 2014Thumbnail for version as of 12:02, 9 February 2014400 × 400 (39 KB)Danny (talk | contribs)WIP on the FD-8 PCB. Note how the header can be removed from the print without re-routing. Some of the traces run critically close to the pads though.
